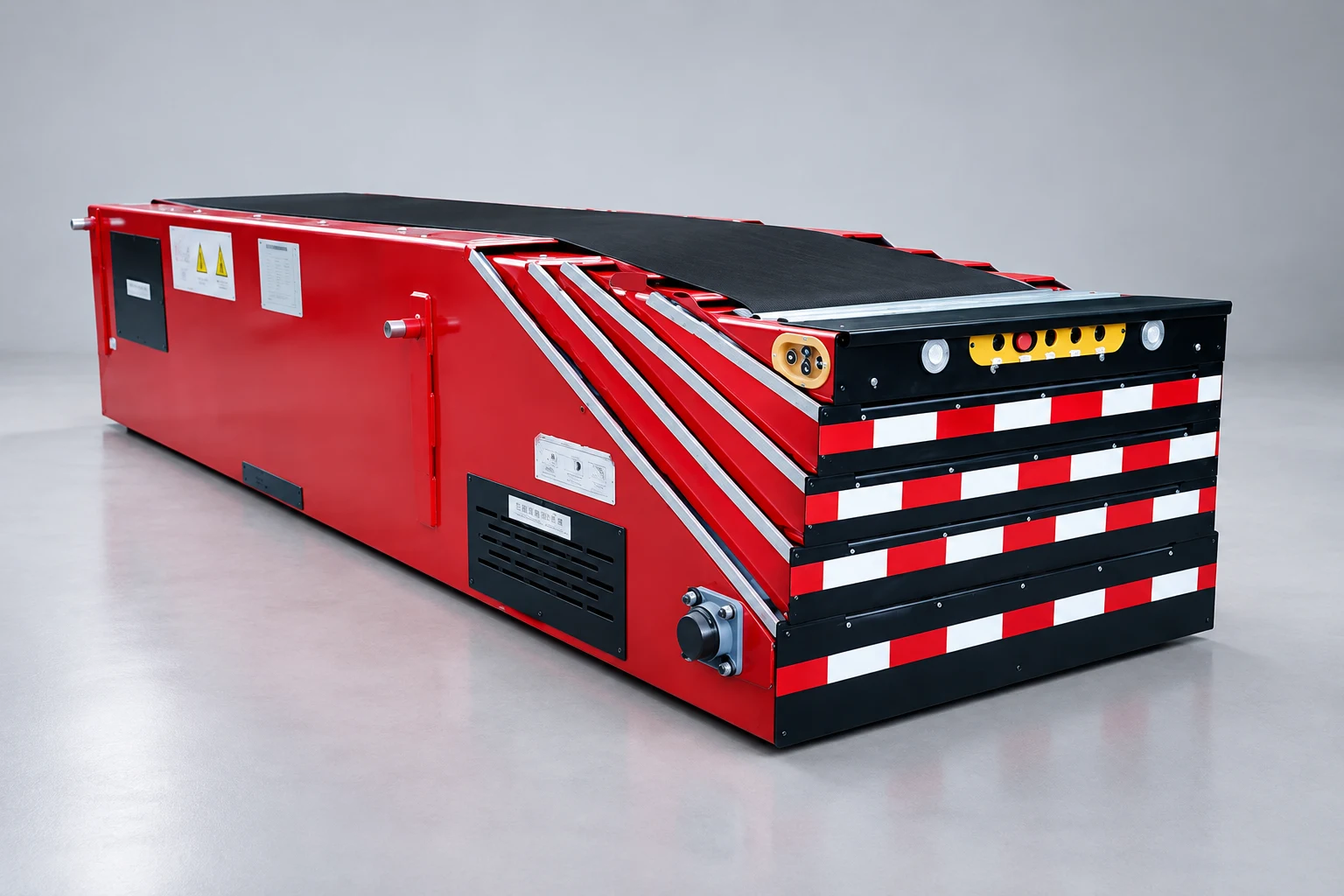

Nested extending boom
Successive rectangular stages extend a continuous conveying route into the vehicle. The retracted body, extension stroke and total reach must all fit the dock and trailer envelope.
Telescopic belt conveyors for truck loading
Custom-made telescopic belt conveyors for truck and container handling. Configure the retracted envelope, working reach, belt width, heights and controls around your loading bay.
Made to order for your goods and layout
Every conveyor is custom made for the client. Define the length, width, heights, conveying surface and controls around your operation, with the selected configuration and project scope set out in writing.
- Legal seller
- Krona Robotics UAB
- Company registration
- Lithuania
- Estimated delivery
- 60 days
- All products
- CE certified
- Company certification
- ISO 9001
- Warranty
- 2 years
Estimated delivery: 60 days. Your written quotation confirms the delivery schedule, freight arrangements and responsibilities for installation and support. Two-year warranty. The written quotation specifies coverage, the commencement date, exclusions, spare parts and service arrangements.
Request a written quote ↗Product gallery
Illustrations show the working concept. Equipment dimensions, finishes, guarding and options are confirmed in your quotation.
How the equipment works

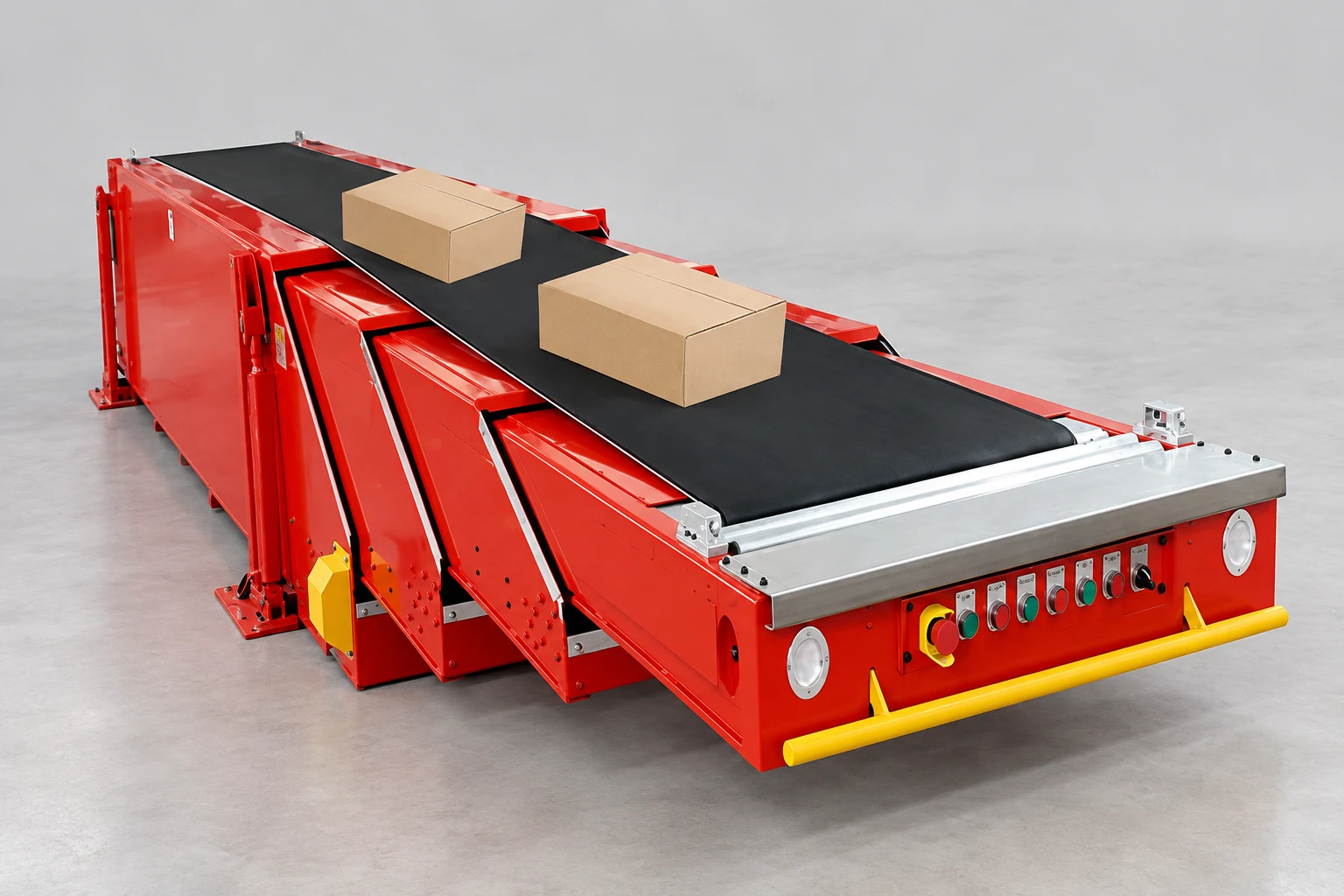

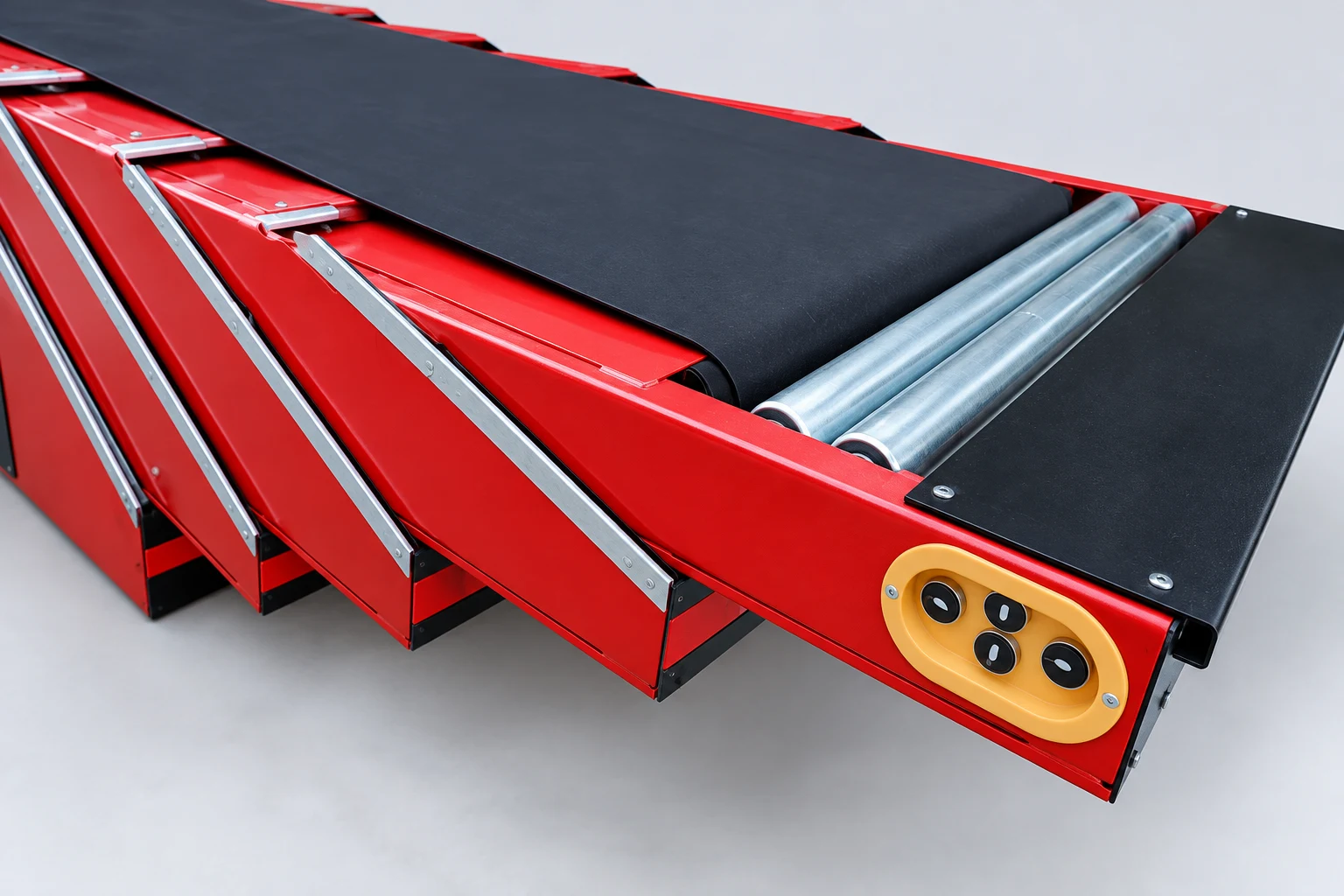

Continuous belt surface
Goods travel on a belt rather than an expandable roller bed. Define the parcel base, width and transfer conditions at the dock and operator end.
Mounting and operating envelope
Fixed positioning, mobility and height adjustment are configuration choices. Specify clearances, operator positions and the load condition at maximum extension.
Application & fit
Select the telescopic arrangement from the goods, vehicle envelope and available dock space. Retracted body length, extension stroke and total working reach are separate dimensions. The load condition at full extension, belt support, transfer heights and operator access are considered together for the complete operating envelope.
Plan the application and handover points
Illustrative workflow for discussing your project. This is not a dimensioned installation drawing or a completed customer project.
- Dock-side conveyor
- Telescopic belt conveyors
- Operator inside the vehicle
Check before selecting the configuration
Reserve the retracted body footprint and maximum operating reach. Specify trailer dimensions, mounting, operator position and the required load condition at full extension.
For a mobile incline and supported roller-extension arrangement: Truck loading & unloading conveyors ↗
Configuration choices
Made to order for your operation
Each telescopic conveyor is made to order for its bay, vehicles and cargo. The boom dimensions and full-extension load condition are assessed as one working envelope.
Layout and operating choices
Fixed dock installation
Set the retracted body position, required extension, belt width and vehicle relationship. Define load distribution, clearances and the connection to warehouse handling.
Position and height requirements
Specify whether the project needs relocation or changes in working height. Supports, adjustment, controls and operator positions are selected around those requirements rather than assumed from an illustration.
Configuration information
These application details define the made-to-order conveyor. Include the dimensions and operating requirements you know; the remaining choices can be developed from your handling task.
- Retracted length, extension stroke and total extended length (mm)
- Load rating required at full extension with rating basis
- Belt width (mm), speed (m/min), mounting and height adjustment
- Dock envelope, power, controls and emergency-stop interfaces
Delivery and line connections
The selected conveyor is configured to connect with your equipment and site. Include the destination, transfer levels, power supply and control signals. The quotation defines the delivery schedule and installation, connection and commissioning responsibilities.
Telescopic belt conveyors: Configuration and ordering questions
Explore the configuration, integration and ordering decisions for this equipment. Send your load details and layout to discuss your own project.
Can the boom dimensions and belt width be customized?
Yes. The belt width, retracted envelope, extension and working heights are configured around your bay, vehicles and cargo. These dimensions are selected with the supporting arrangement and required load condition.
What is the difference between retracted length, stroke and reach?
Retracted length describes the stored conveyor body. Stroke is the additional extension, while total reach describes the complete extended working length. State all three so the conveyor fits both the bay and the vehicle.
What vehicle and dock clearances must be included?
Send the vehicle opening and floor level, available internal space, dock geometry and warehouse connection. Include operator access and any obstructions throughout extension, operation and retraction.
Why does the load at full extension matter?
The load condition changes with boom position and how goods are distributed along it. Specify item weights and the required loading condition at maximum reach so the selected configuration can be assessed against that case.
Can the working height or mounting arrangement be changed?
Describe the heights and positions you need, including any relocation requirement. The proposed supports, adjustment and operating envelope must suit those conditions; an image does not define the supplied mounting arrangement.
Can the conveyor load and unload vehicles?
Specify both modes when needed. Belt direction, controls, operator access and the feeding and receiving arrangements are selected for each operating sequence.
How are speed and line controls chosen?
Provide the cargo mix, sustained and peak flow, duty hours and warehouse interfaces. The drive and controls are selected for the full task, including start/stop behaviour, emergency-stop interfaces and downstream availability.
What determines the price of a telescopic conveyor?
Retracted length, extension, belt width, load condition, mounting, height requirements and controls affect the cost. Delivery, installation and the connection to the dock and warehouse line are defined in the quotation.
What delivery estimate and certification apply?
Estimated delivery: 60 days, with the custom specification and schedule confirmed in the written quotation. All products are CE certified; ISO 9001 certification is held by the company.
Tell us what you need to move.
Send your name, email and handling task. If known, add the goods, desired length, usable width and inlet/outlet heights to your message. These technical details are optional.
