Inclined belt route
A continuous belt connects positions at different heights over a sloped route. Incline and belt friction must suit the item base and centre of gravity.
Inclined belt conveyors for changing transfer heights
Custom-made inclined belt conveyors for changing transfer heights. Choose width, length, entry and exit levels, belt surface and supports around the goods and available floor space.
Made to order for your goods and layout
Every conveyor is custom made for the client. Define the length, width, heights, conveying surface and controls around your operation, with the selected configuration and project scope set out in writing.
- Legal seller
- Krona Robotics UAB
- Company registration
- Lithuania
- Estimated delivery
- 60 days
- All products
- CE certified
- Company certification
- ISO 9001
- Warranty
- 2 years
Estimated delivery: 60 days. Your written quotation confirms the delivery schedule, freight arrangements and responsibilities for installation and support. Two-year warranty. The written quotation specifies coverage, the commencement date, exclusions, spare parts and service arrangements.
Request a written quote ↗Product gallery
Illustrations show the working concept. Equipment dimensions, finishes, guarding and options are confirmed in your quotation.
How the equipment works

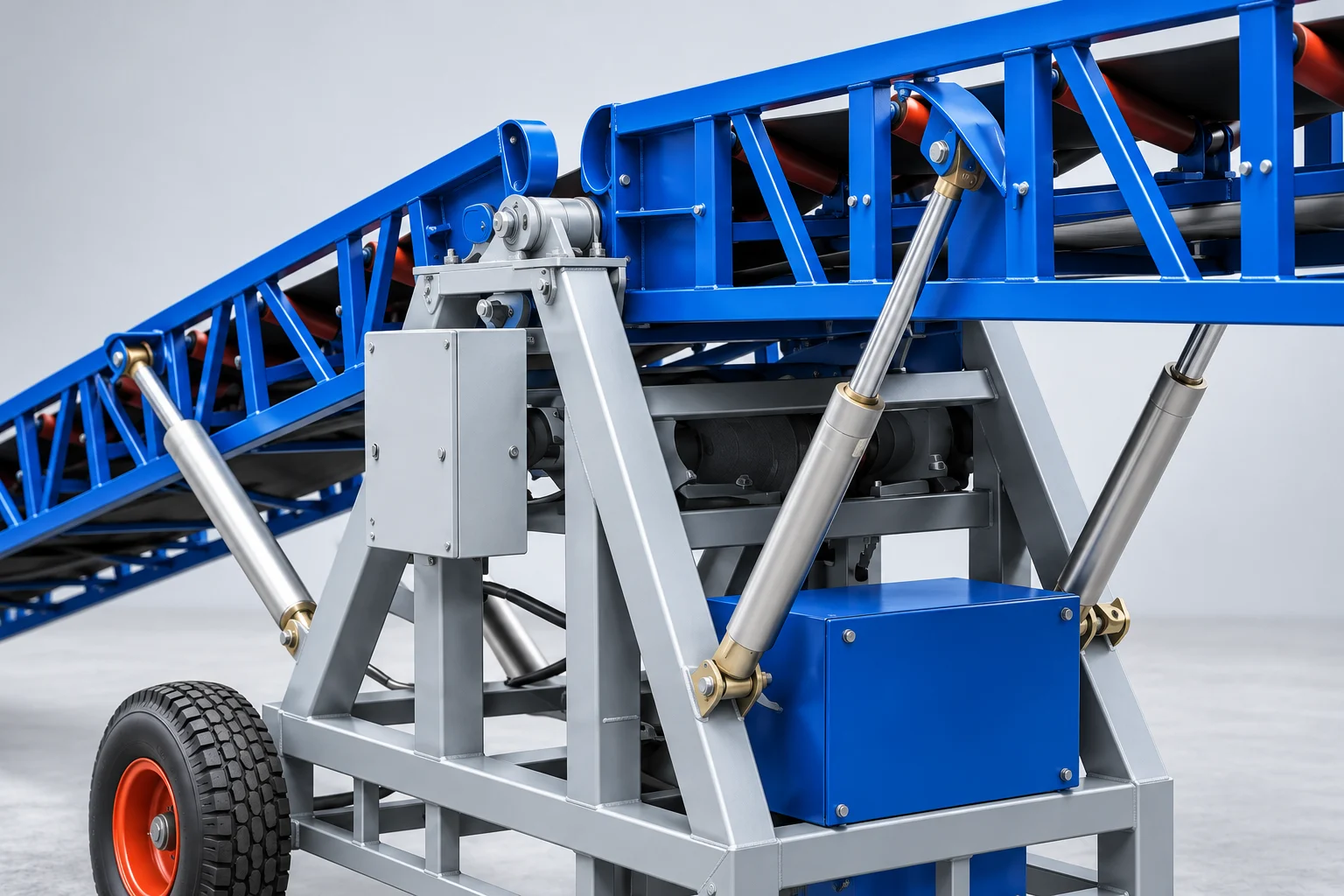

Supported height adjustment
A pivot and lifting support set the working angle. The full conveyor envelope, load distribution and clearances must be checked across the required height range.
Mobile chassis
A wheeled support can allow repositioning between handling points. Include the travel path, turning space, floor condition and parked working position.
Application & fit
An inclined belt connects different working heights along a sloped route. Goods base friction, centre of gravity, weight and end transfers determine the appropriate surface and geometry. The supporting frame, height adjustment and operating envelope are selected together, including floor space and stability where the conveyor is mobile.
Plan the application and handover points
Illustrative workflow for discussing your project. This is not a dimensioned installation drawing or a completed customer project.
- Lower workstation
- Elevating belt conveyors
- Higher handling level
Check before selecting the configuration
Calculate the inclined route from both end heights and available floor length. Check the goods on the selected belt, transfer gaps, slip risk and any required cleats or sidewalls.
For transfer between levels in a compact floor footprint: Vertical conveyors ↗
Configuration choices
Made to order for your operation
Each inclined conveyor is made to order for the required height change and goods. The belt, incline, supports and transfer points are selected for the same working envelope.
Layout and operating choices
Fixed inclined connection
Set the entry and exit heights, horizontal reach and goods transfer positions around the adjoining stations. Select the incline, belt surface and drive for stable movement along that route.
Adjustable or mobile working position
Define the required range of working positions, clearances and parking space. Height adjustment, support geometry, controls and the movement path are considered as a complete arrangement.
Reference dimensions for custom configurations
Every conveyor is made to order. These dimensions are configuration references, not a limit on the width, length or working height you can request. We select the final dimensions and options together for your goods and layout.
Incline conveyor
- Reference widths (mm)
- 600
- 800
- Reference arm ground clearance (mm)
- 1,700
- Length
- To suit your requirements
A roller extension into the container is available at additional cost. The listed 1,700 mm dimension is arm ground clearance.
Send your required length, usable width, inlet and outlet heights, and goods dimensions and weight. Include any requirements outside these reference sizes for configuration review.
Configuration information
These application details define the made-to-order conveyor. Include the dimensions and operating requirements you know; the remaining choices can be developed from your handling task.
- Minimum and maximum goods dimensions (mm), base material and weight (kg/item)
- Inlet/outlet heights, horizontal reach and available floor space (mm)
- Incline, belt surface, speed and load distribution
- Chassis, floor, power, stopping and adjoining-line interfaces
Delivery and line connections
The selected conveyor is configured to connect with your equipment and site. Include the destination, transfer levels, power supply and control signals. The quotation defines the delivery schedule and installation, connection and commissioning responsibilities.
Elevating belt conveyors: Configuration and ordering questions
Explore the configuration, integration and ordering decisions for this equipment. Send your load details and layout to discuss your own project.
Can the conveyor be made for our height difference?
Yes. Entry and exit levels, belt width, route length and horizontal reach are configured around your goods and floor space. The incline, supporting frame and transfers are selected together.
Can every carton be carried up the incline?
Stability depends on the base, friction, centre of gravity, item weight and end transfers. Provide representative goods and the proposed route so the belt surface and geometry can be selected for that case.
How is the belt surface chosen?
Describe the goods base and any stated contact or environmental requirements. The contact surface is selected to support stable movement on the required incline; width alone does not establish suitability.
Can the working height be adjustable?
Include the lowest and highest positions you need and the space around them. The support, adjustment arrangement, clearances and load distribution must remain suitable throughout the selected working envelope.
Is an inclined conveyor the same as a vertical lift?
No. An inclined belt follows a sloped route and occupies horizontal floor space. A vertical goods conveyor transfers between levels using a different mechanism, footprint and interface arrangement.
How are speed and duty specified?
Provide the required items per minute, item range, hours of use and feeding sequence. Drive and controls are chosen for the incline and operating case, including starts, stops and transfers at both ends.
Can it move between workstations?
A mobile arrangement can be proposed around the required working positions. Include the movement path, turning space, floor condition, parking stability, power connection and how each end reconnects.
What affects the price of a custom inclined conveyor?
Width, length, height change, carrying surface, frame, adjustment arrangement and drive affect the cost. Mobility, end transfers, controls and the requested installation scope are also part of the quotation.
What delivery and certification details apply?
Estimated delivery: 60 days, with the selected configuration and schedule confirmed in writing. All products are CE certified, and the company holds ISO 9001 certification.
Tell us what you need to move.
Send your name, email and handling task. If known, add the goods, desired length, usable width and inlet/outlet heights to your message. These technical details are optional.
